Architectural Design & Planning
A selection of drawings from recent projects in Wales and England. Locations are given by town or area only, and client names are removed.
Fishguard, Pembrokeshire

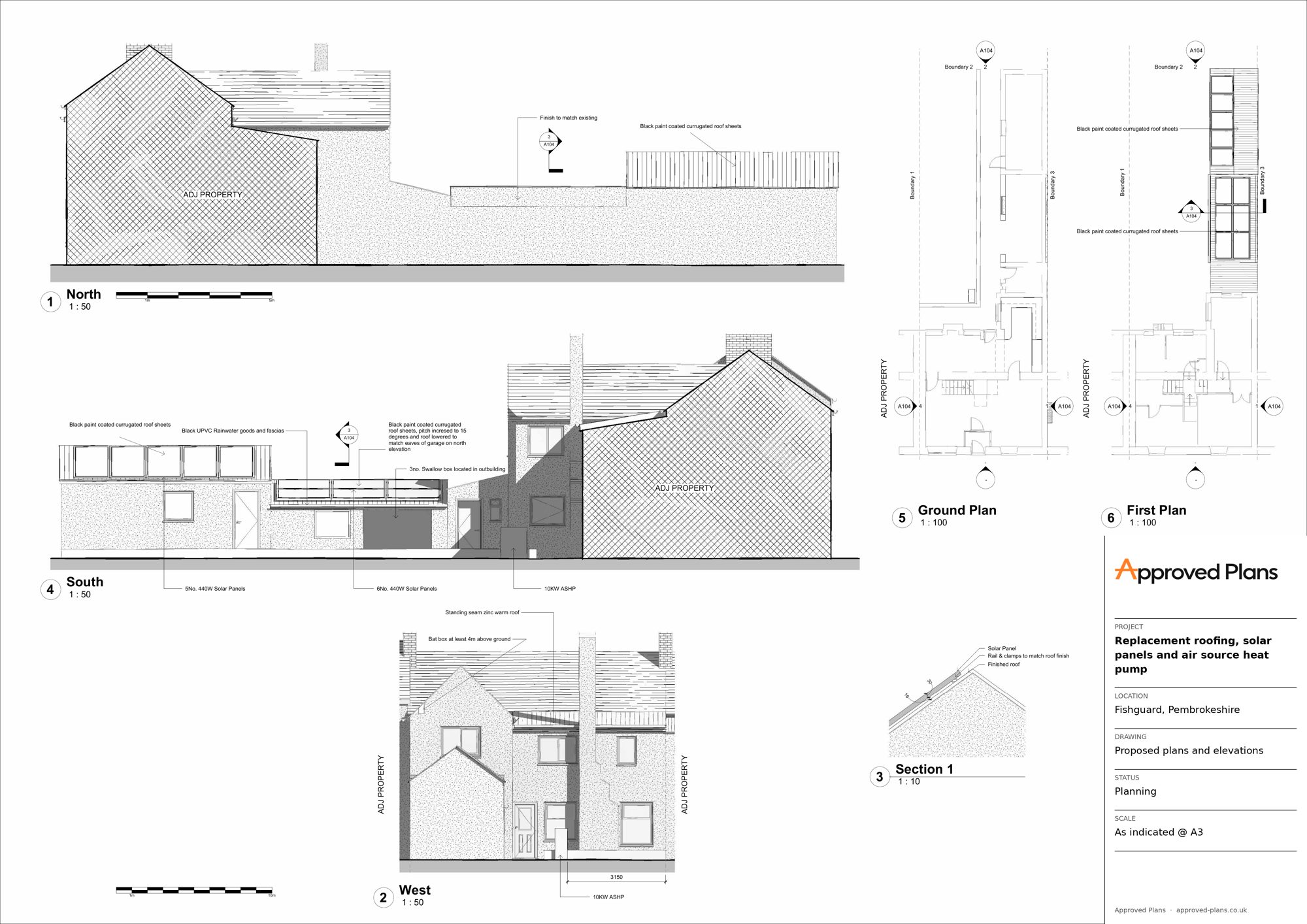

Failing roof sheeting replaced, with solar panels and an air source heat pump added to a house in a conservation area. Planning drawings with elevations and a roof detail.
Sketty, Swansea

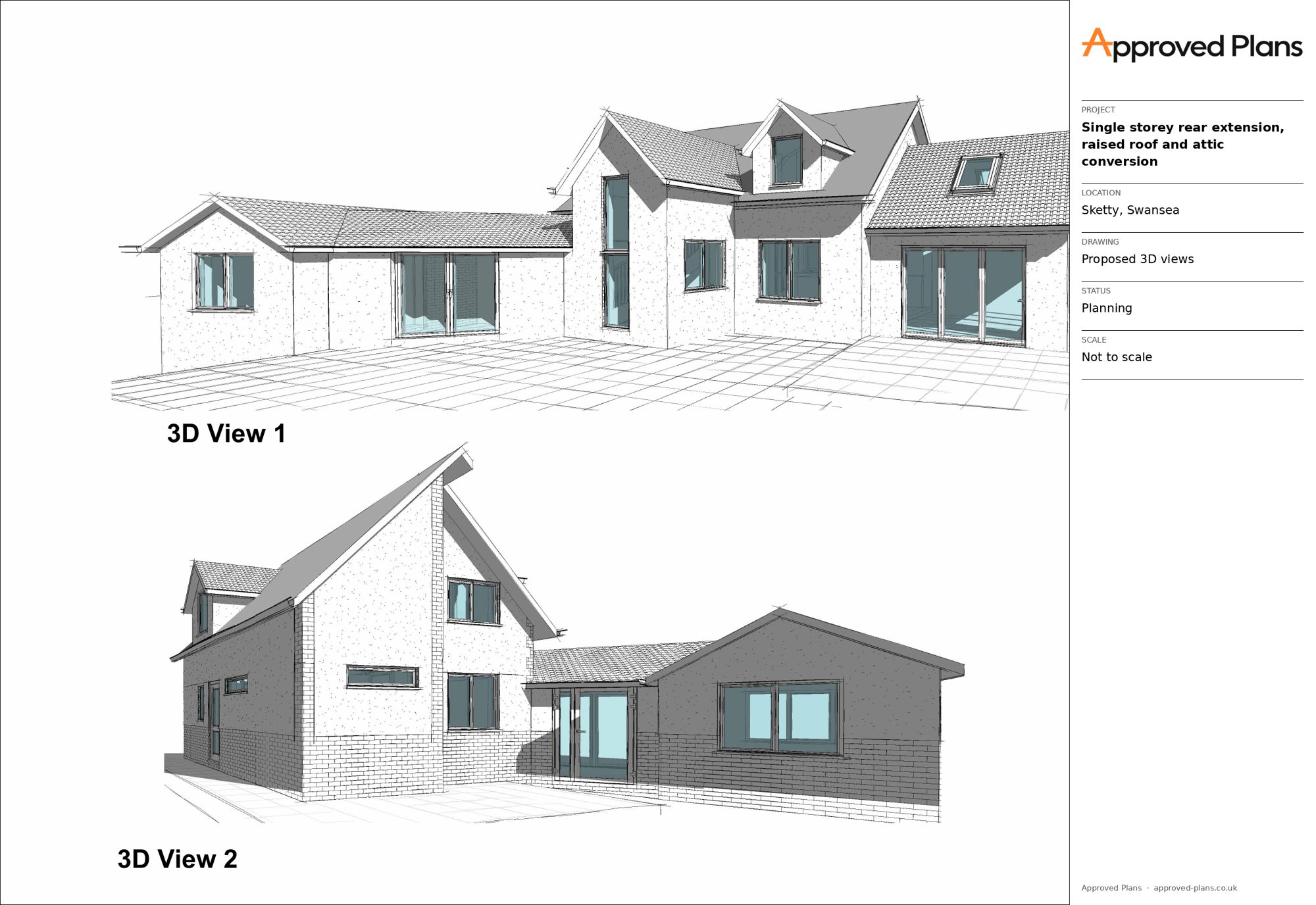

A bungalow extended to the rear with the roof raised to form bedrooms in the attic. Plans, elevations and 3D views prepared for the planning application, which has now been granted.
Sketty, Swansea

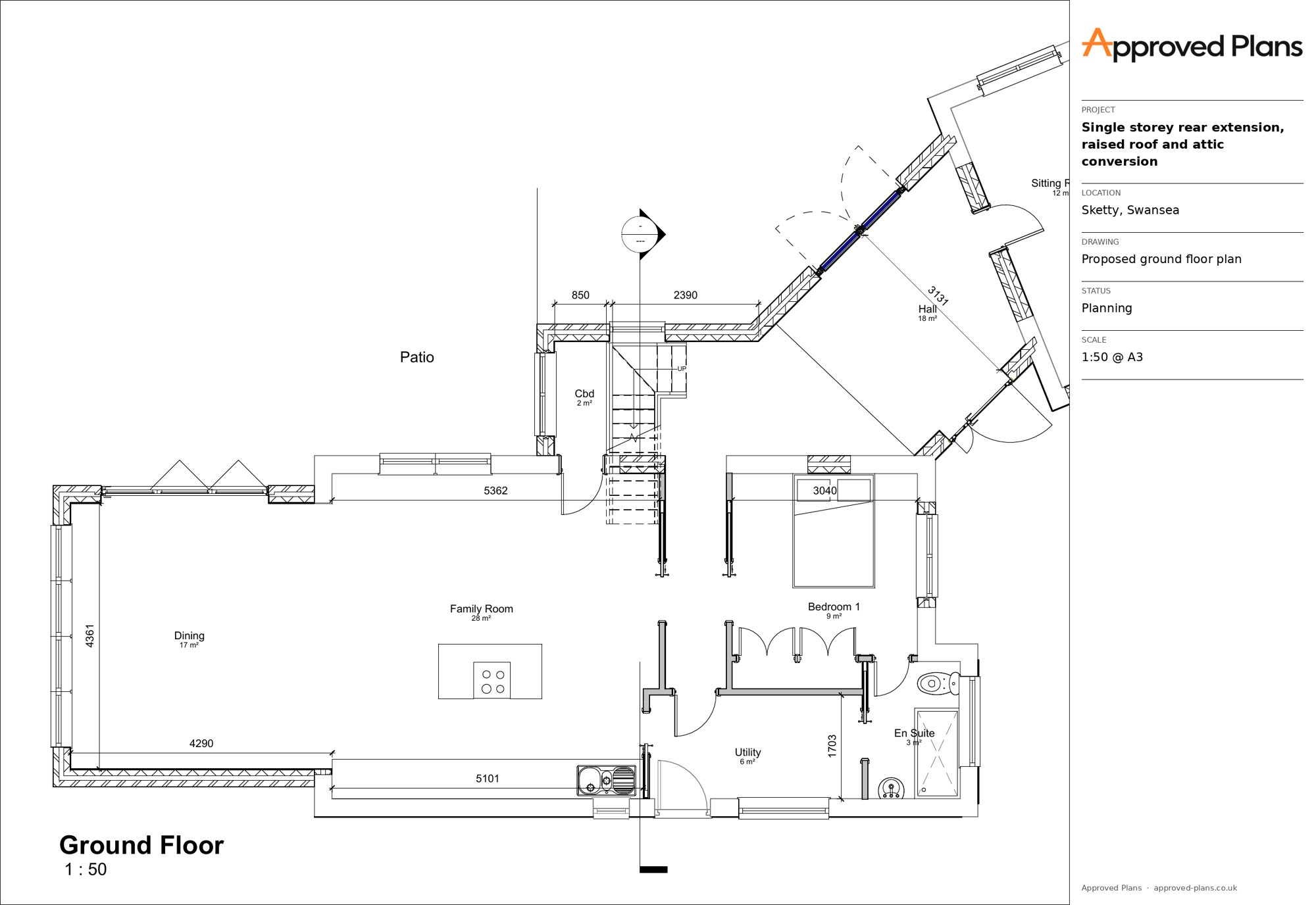

The reworked open-plan ground floor with family room, utility and bedroom, drawn at 1:50.
Trimsaran, Carmarthenshire

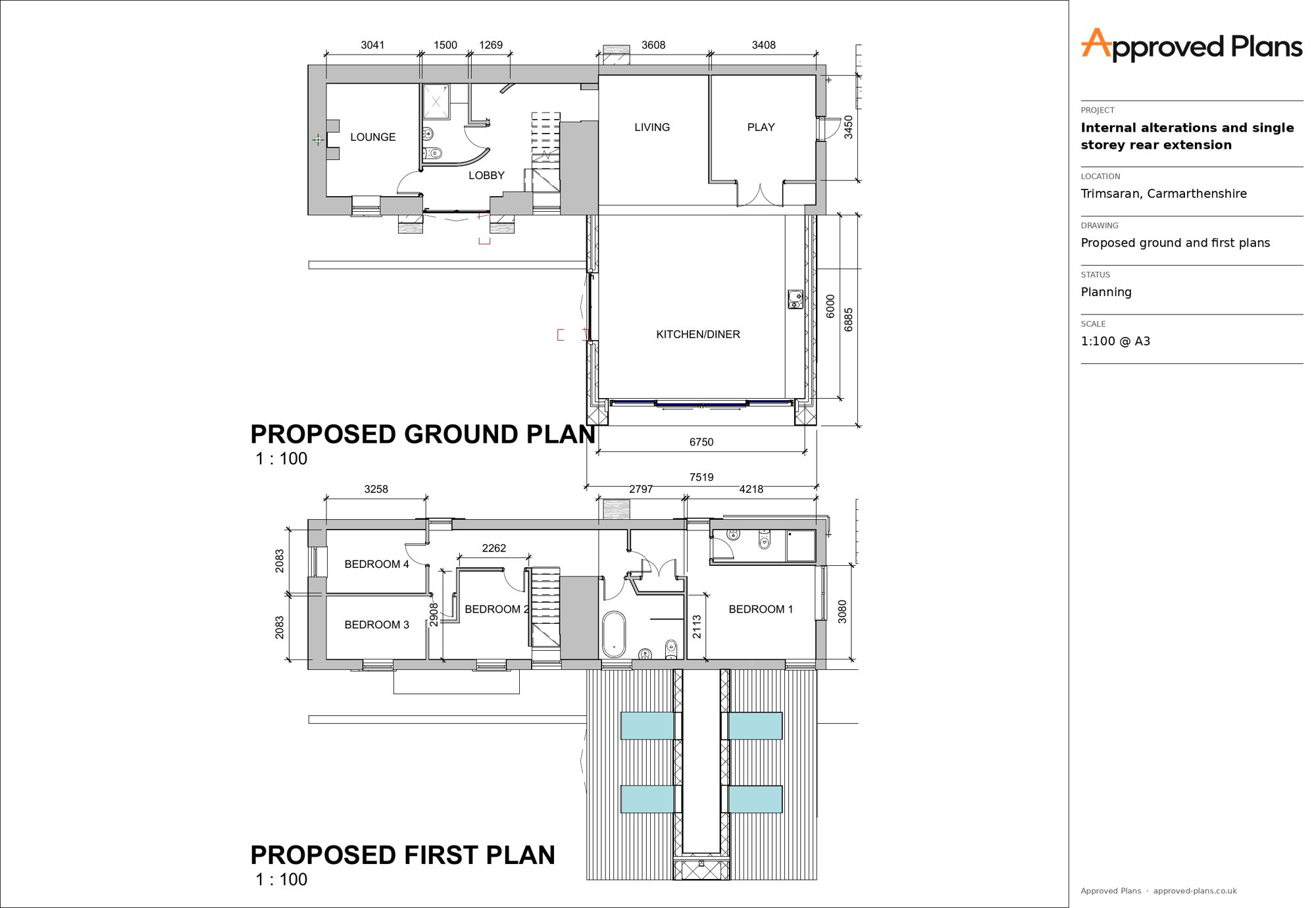

A single storey rear extension and reworked layout to a cottage. Existing and proposed plans prepared for the planning application.
Llanelli, Carmarthenshire

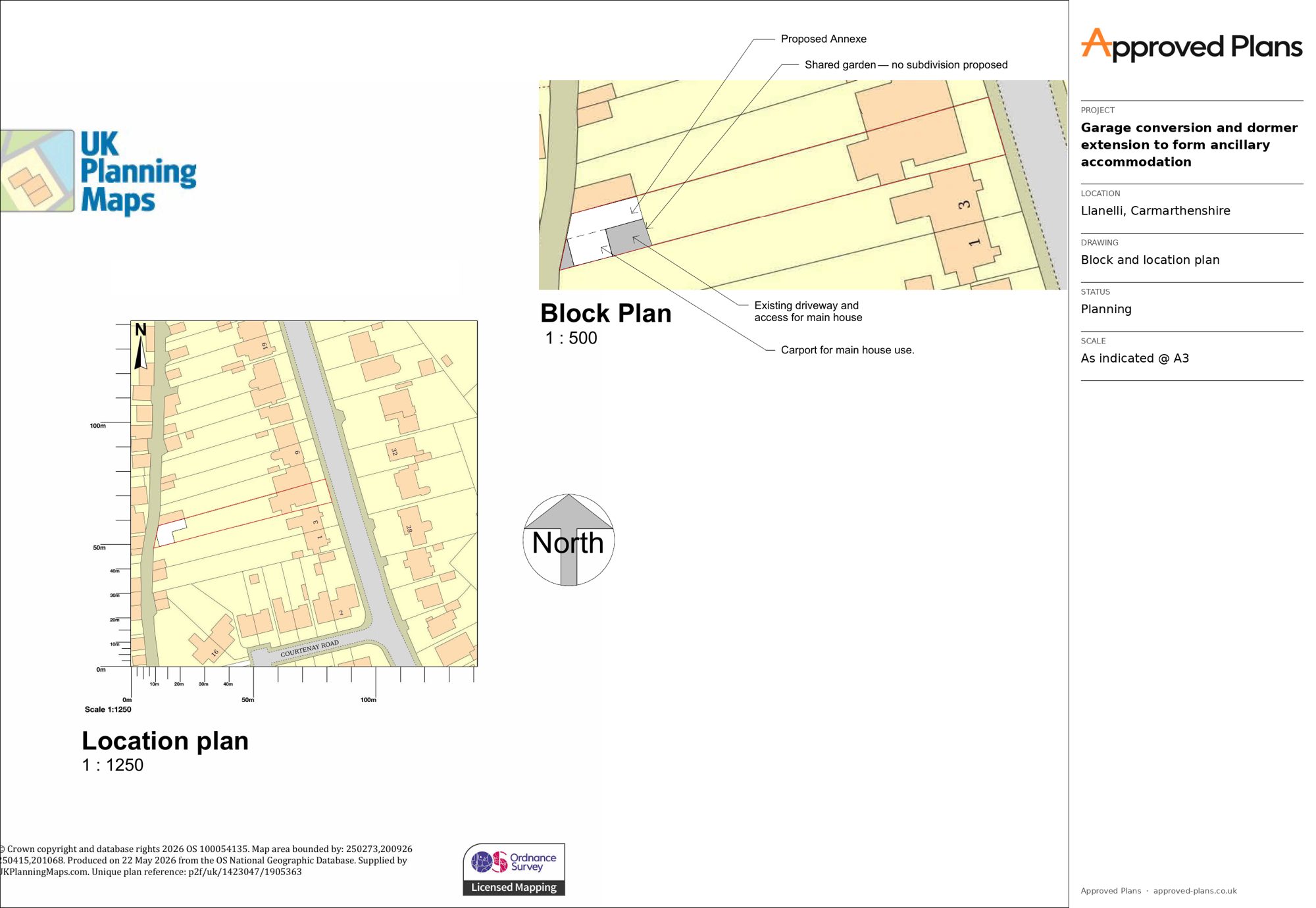

A garage converted and a dormer added to form ancillary accommodation. Block and location plans with the planning drawings.
Sketty, Swansea

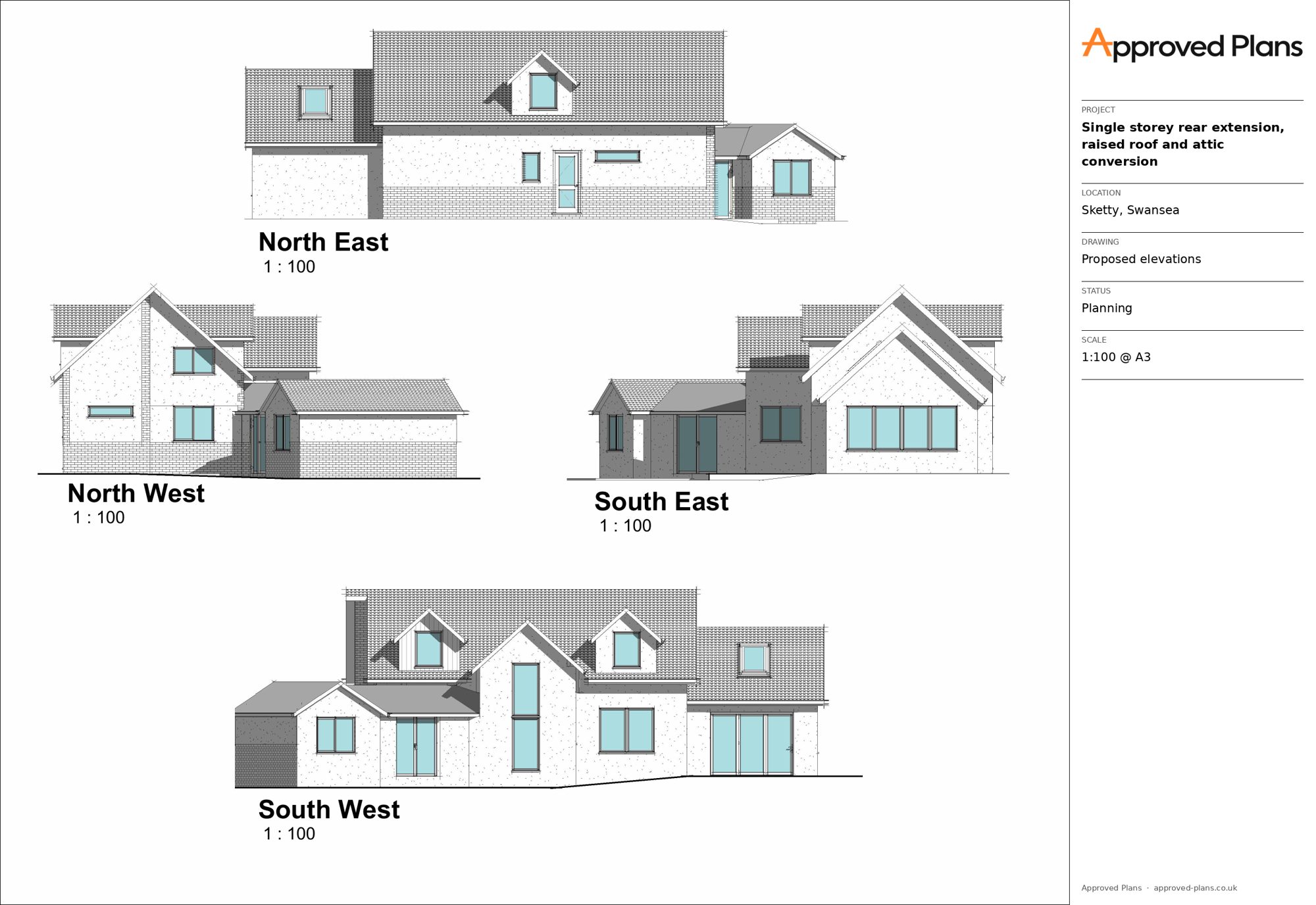

All four elevations of the raised roof and rear extension, drawn at 1:100 for the planning application.
Pennard, Gower

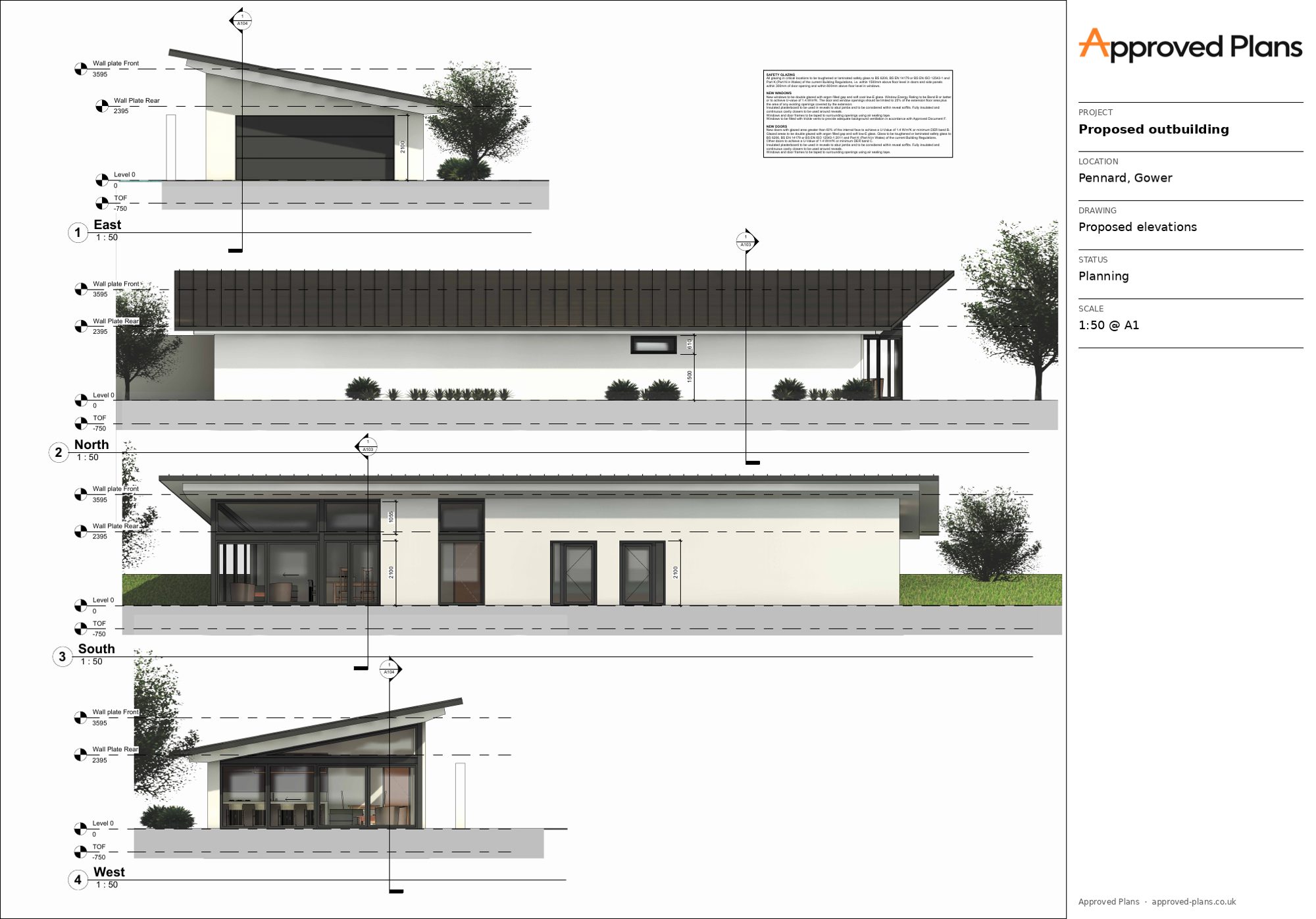

Four rendered elevations at 1:50 showing materials and levels, with notes for Building Control.
Horsham, West Sussex

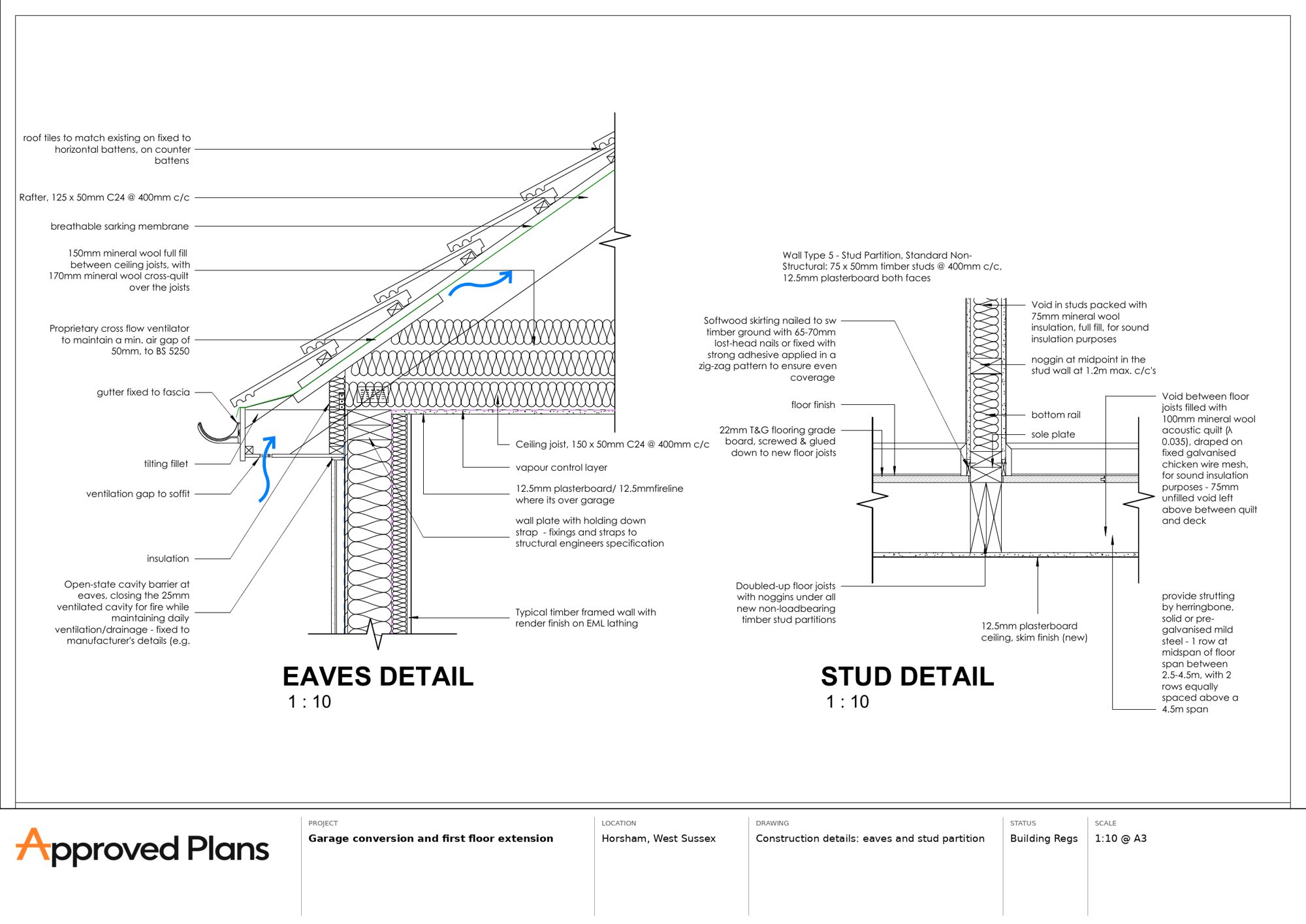

Typical details drawn at 1:10 for Building Control, showing ventilation, insulation, fixings and the sound-insulated stud partition between floors.
Horsham, West Sussex

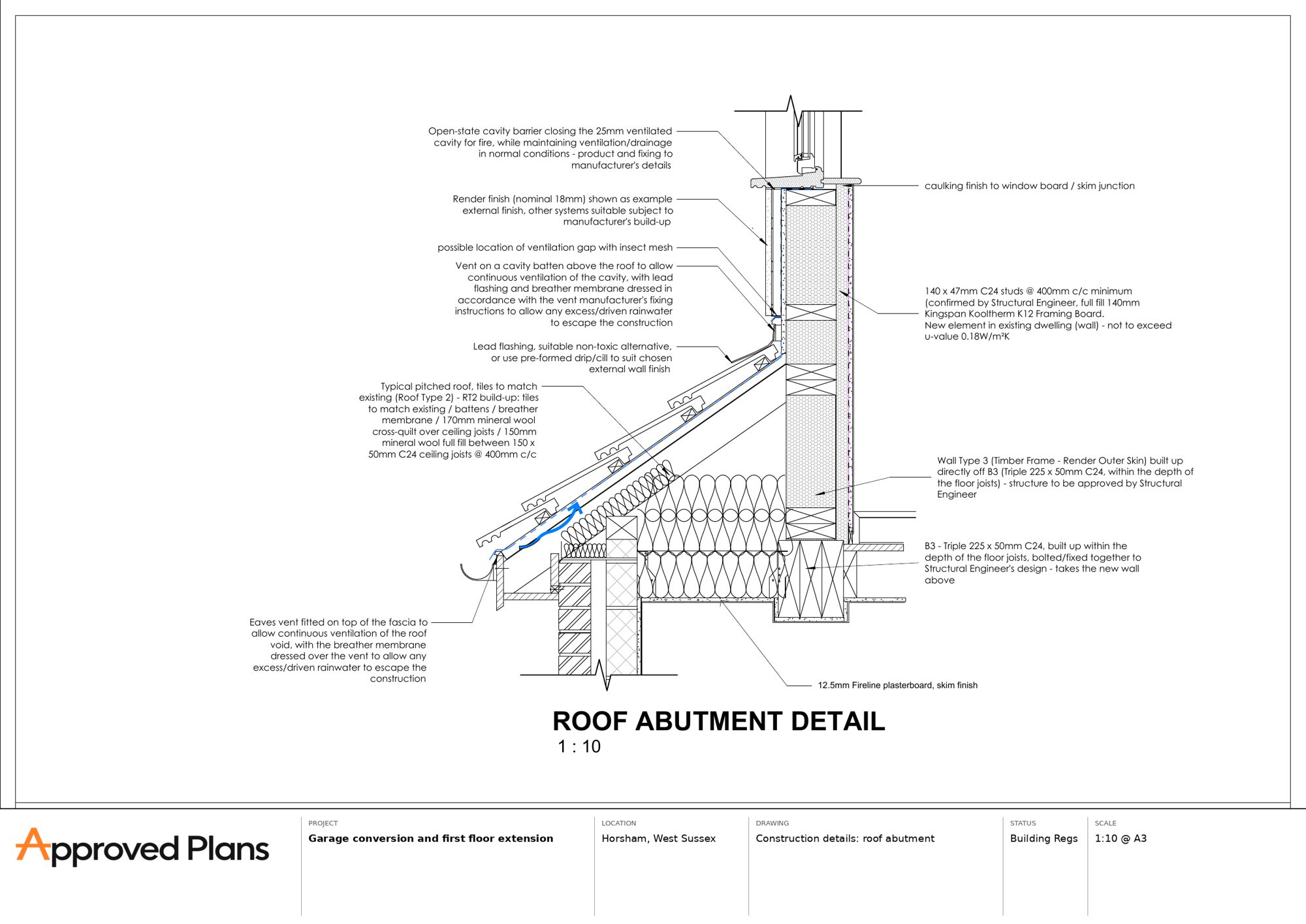

The junction where a new pitched roof meets an existing wall, with ventilation, flashing and the wall build-up shown at 1:10.
Pennard, Gower

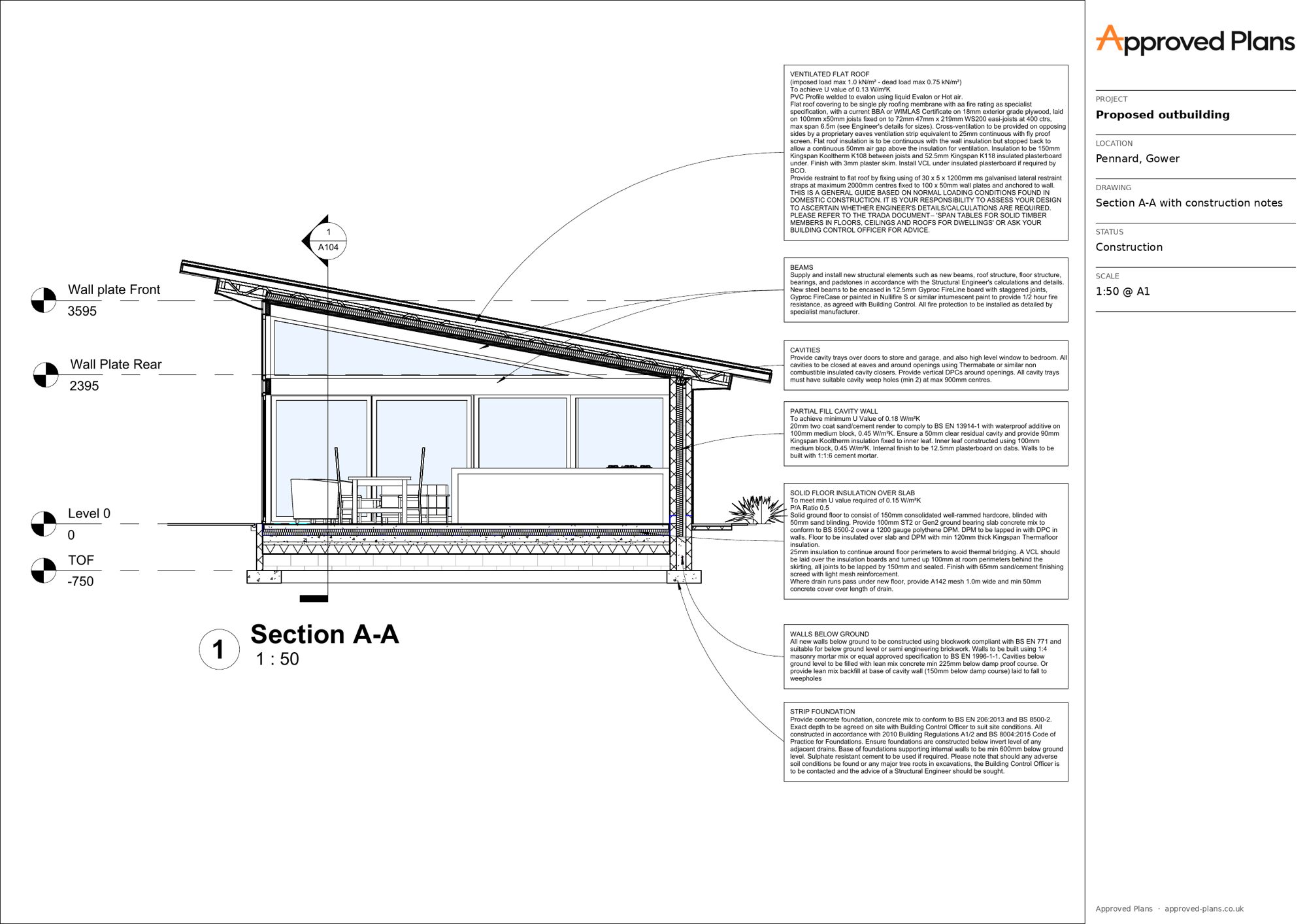

A full-height section through the outbuilding with roof, wall, floor and foundation build-ups and the Building Regulations notes for each element.
Horsham, West Sussex

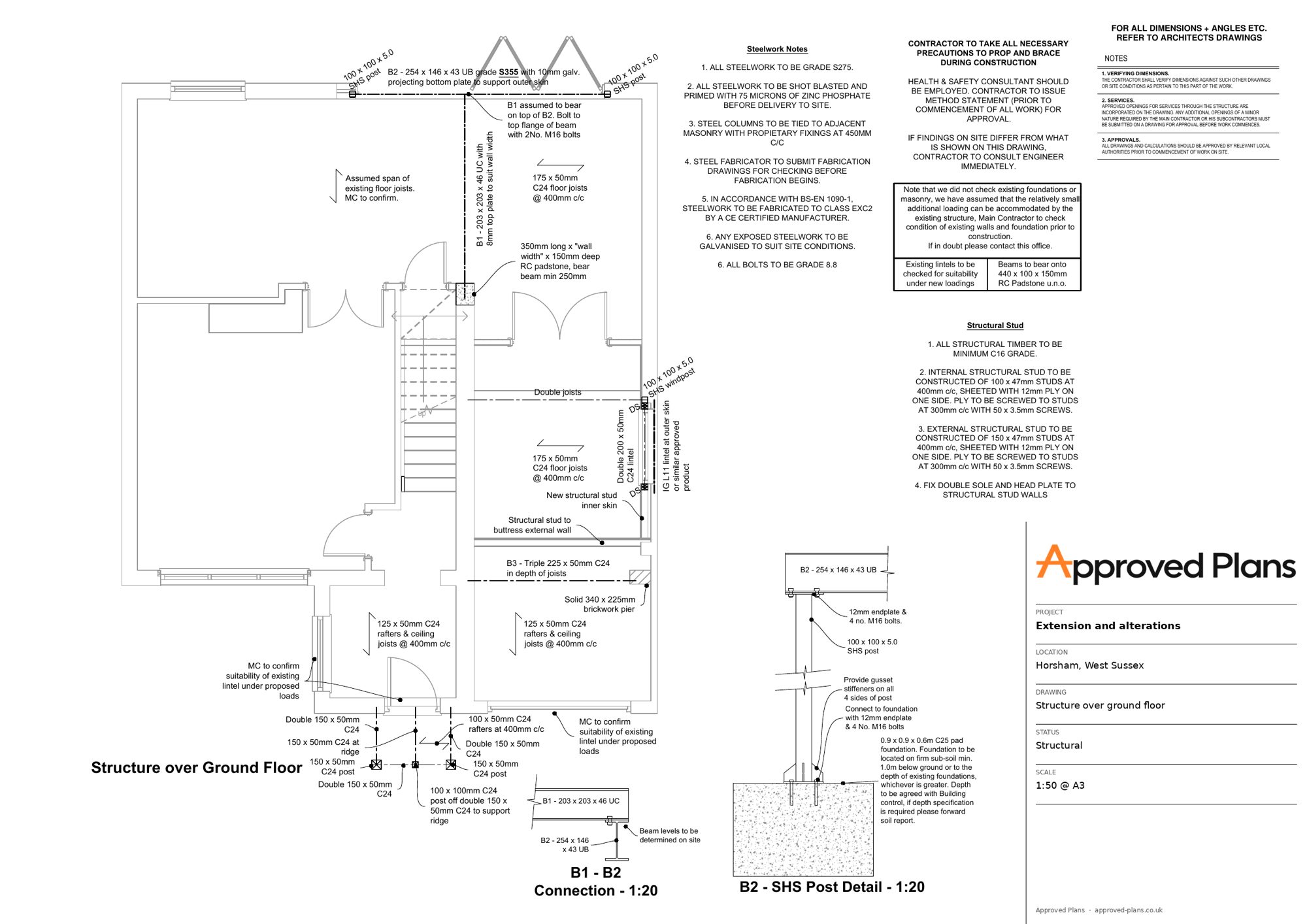

Steel beams, post details, joist and rafter sizes and pad foundations for a garage conversion and first floor extension, prepared with a structural engineer.
Pennard, Gower
A mono-pitch outbuilding with full-height glazing. Planning and construction drawings, with 3D views to show the design.
Hendon, London

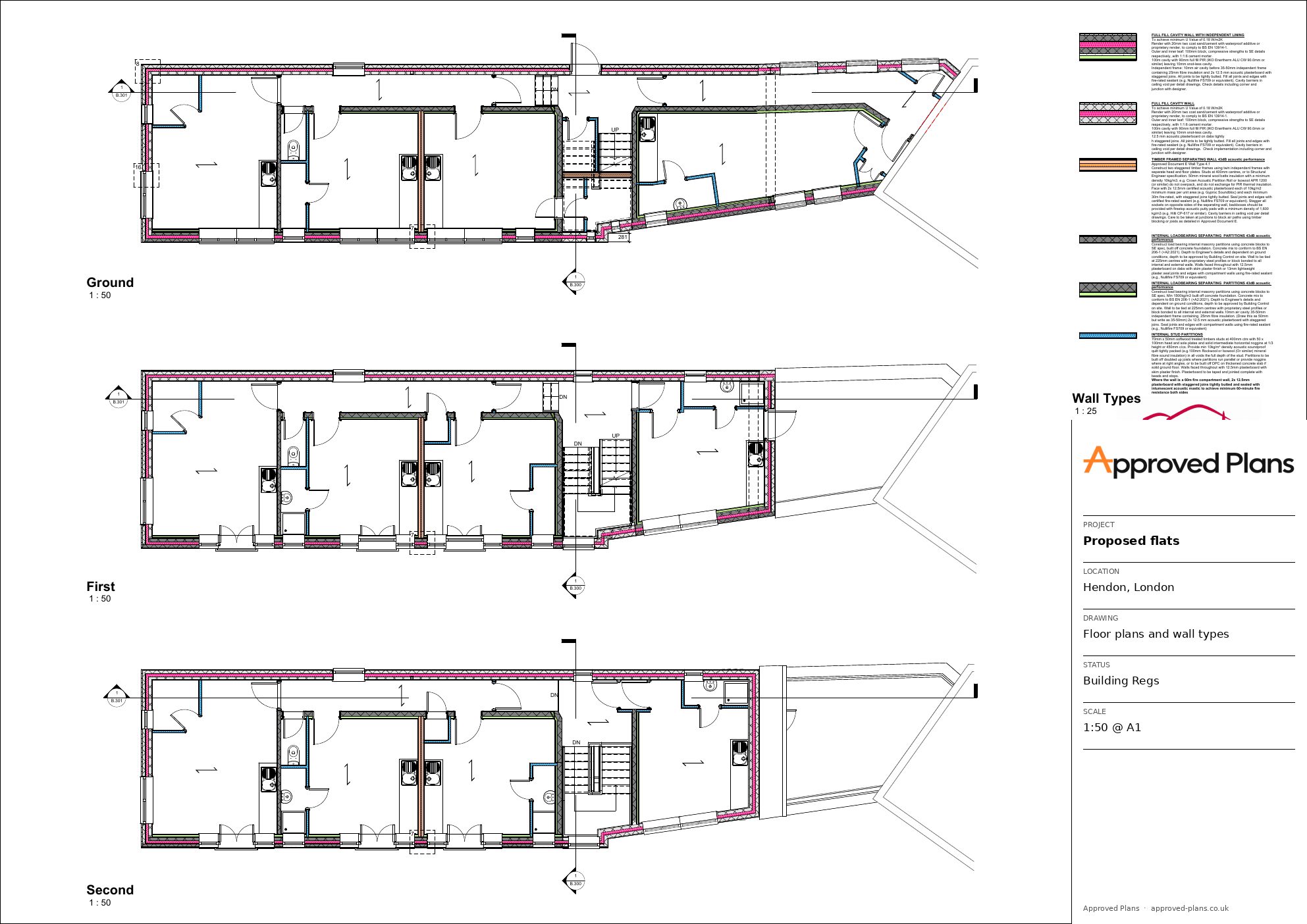

Three floors of flats with every wall type keyed to its build-up, including fire and sound separation, for Building Control.
Trimsaran, Carmarthenshire
Revised drawings and 3D views submitted as an amendment to an approved scheme.
Planning permission and Building Regulations approval are decisions made by the council and Building Control, not by us. These examples show the packages we prepare.
Send the site address and what you want to build. We reply with the next steps and your fixed price.
